HDMI
FTHS
Product description

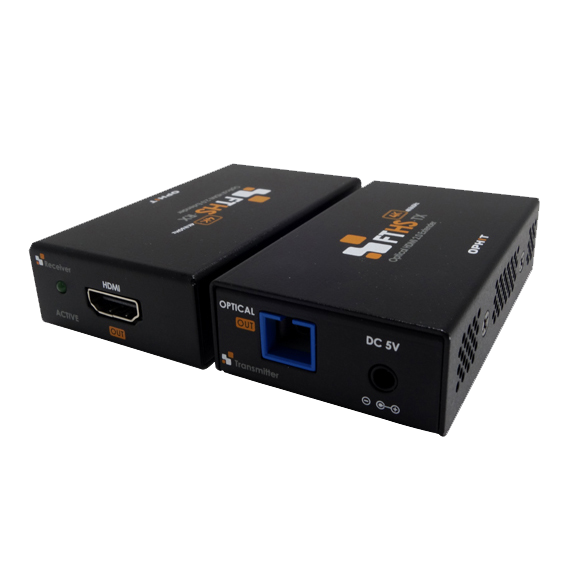

HDMI2.0 Optic Fiber 1Ch Extender



This unique fiber optical transceiver let your PC, digital UHD monitor extend up to
200 meter(656ft) away from host based on HDMI standard without signal degradation
by UHD (3840x2160 or 4096x2160 @60Hz) resolution.

Features

▪ High Speed and long distance transmission by optical system
▪ Compatible with HDMI standard V2.0a
▪ Supports 50-micron OM3 or OM4 Fiber with an SC Connector
▪ Main-link video signal / DDC data and Hot Plug Detection signal is transmitted by-
1 channel multimode optical fiber
▪ External power supply use(TX, RX)
▪ SCDC(Status and Control Data Channel) compliant
▪ HDCP 2.2 compliant
▪ EMC & Safety : CE, FCC
※ Does not support CEC and HEAC.
▪ Input and Output Signal : HDMI 2.0 Standard
▪ Video Bandwidth : 18Gbps
• Dimension : 81.2W x 21.1D x 47.5H (mm)
▪ Optical Connector : SC Connector
▪ Electrical Connector : HDMI type A Connector (Female)
▪ Applied Fiber : OM3 or OM4 Multi-mode glass-fiber.
▪ Maximum Supporting Resolution : UHD(3840x2160 / 4096x2160@60Hz)
▪ Transmission distance : 200 meter (656 ft)
▪ External Power : 5V / 2A (1.35ø DC JACK)
• Power Consumption (transmitter) : 3.05W (Typ)
• Power Consumption (receiver) : 2.85W (Typ)
▪ Operating Temperature Range : 0°C ~ 50°C
▪ Storage Temperature Range : -20°C ~ 70°C


Package
• Transmitter, Receiver
• Power Adapter 2ea
• 1.0M HDMI cable 2ea
• User’s manual
