Displayport
FTDS
Product description

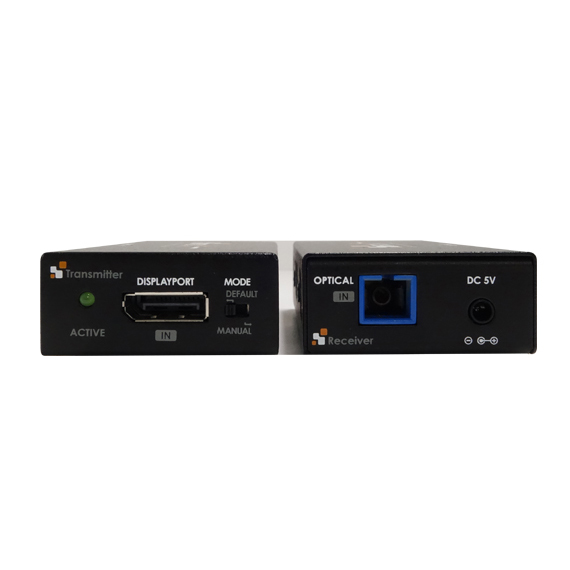

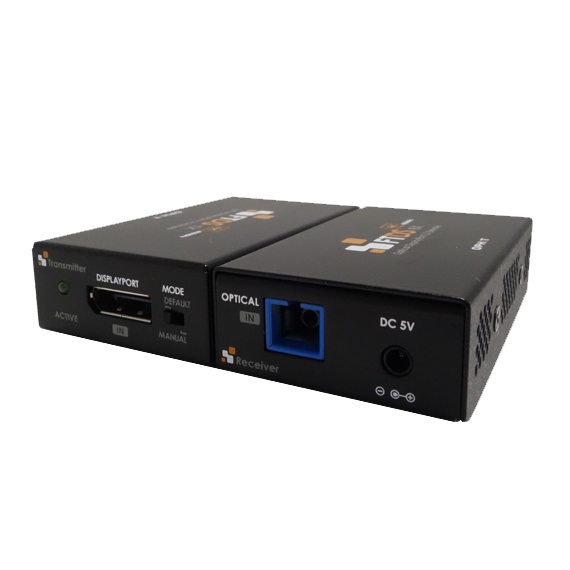

Displayport 1.2 fiber optic 1Ch Extender
This unique fiber optical transceiver let your PC, digital HDTV or Projector extend up to
200 meter(656ft) away from host based on DisplayPort standard without signal
degradation by UHD (3840x2160 or 4096x2160 @60Hz) resolution.

Features

▪ High Speed and long distance transmission by optical system
▪ Compatible with DisplayPort standard V1.2
▪ Supports 50-micron OM3 or OM4 Fiber with an SC Connector
▪ Main-link video signal / AUX data and Hot Plug Detection signal is transmitted by- 1 channel multimode optical fiber
▪ External power supply use(TX, RX)
▪ Mode switch use(TX, RX)
▪ DPCD(DisplayPort Configuration Data) compliant
▪ DPCP or HDCP compliant
▪ EMC & Safety : CE, FCC



• Input and Output Signal : DISPLAYPORT 1.2a Standard
• Video Bandwidth : 21.6Gbps
• Dimension : 81.2W x 21.1D x 47.5H (mm)
• Optical Connector : SC Connector
• Electrical Connector : DisplayPort 20 Pin Connector (Female)
• Applied Fiber : OM3 or OM4 Multi-mode glass-fiber.
• Maximum Supporting Resolution : UHD(3840x2160 / 4096x2160@60Hz)
• Transmission distance : 200 meter (656 ft)
• External Power : 5V / 2A (1.35ø DC JACK)
• Power Consumption (transmitter) : 1.75W (Typ)
• Power Consumption (receiver) : 2.0W (Typ)
• Operating Temperature Range : 0°C ~ 50°C
• Storage Temperature Range : -20°C ~ 70°C


Package
• Transmitter, Receiver
• Power Adapter 2ea
• 1.8m displayport cable 2ea
• User’s manual
