OMCC > 4K/8K Products

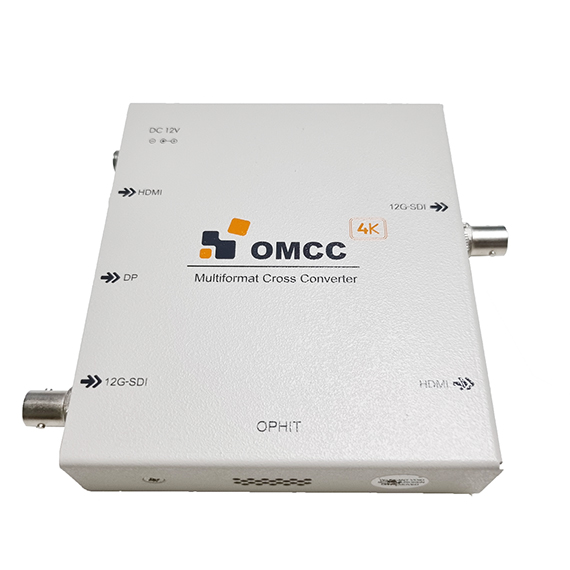

 Ophit's OMCC is a lightweight and compact 4K multi-format cross converter. It converts HDMI or DisplayPort into SDI 12G, 6G, and 3G signals, transmitting high-definition video through the SDI bypass port connection without compromising video signal quality.

The OMCC also converts DisplayPort and SDI signals into HDMI, producing 4K@60Hz resolution for vibrant images. Moreover, the OMCC can select the input video format using the tactile (push-button) switch and the output video format using the SDI (right) / HDMI (left) switch. This feature is compatible with professional broadcast equipment, allowing simple integration into existing installations.

 Feature

•       Maximum resolution up to 4K@60Hz

•       Convert HDMI or DisplayPort to SDI format in 12G, 6G, 3G, and HD

•       DisplayPort input and SDI input can be converted to HDMI output

•       Supports SDI input / output Level A

•       Select the input video format using the tactile (push-button) switch

•       Select the output video format using the SDI (right) / HDMI (left) switch

•       Supports firmware updates via USB port

•       12G-SDI output automatically detects the input video rate and matches

the SDI output with YCbCr 4:2:2-10bit video rate

•        Input Signal / Connector

         1 x HDMI (Type A  Female Connector)

1 x DisplayPort (20pin Female Connector)

1 x SDI (BNC Female Connector)

•        Output Signal / Connector

1 x HDMI (Type A  Female Connector)

1 x SDI (BNC Female Connector)

•        Video Resolution

Up to 4K@60Hz

•        USB Connector

1 x Mini USB-B (Female Connector)

•        Weight

480g (1.05 lbs)

•        Dimensions (mm)

103 x 109 x 26mm (W x D x H)

•        Power Supply

1 x Ext Power Adapter (DC +12V)
