Digital/Analog→Fiber
CVBXW-SVID
Product description

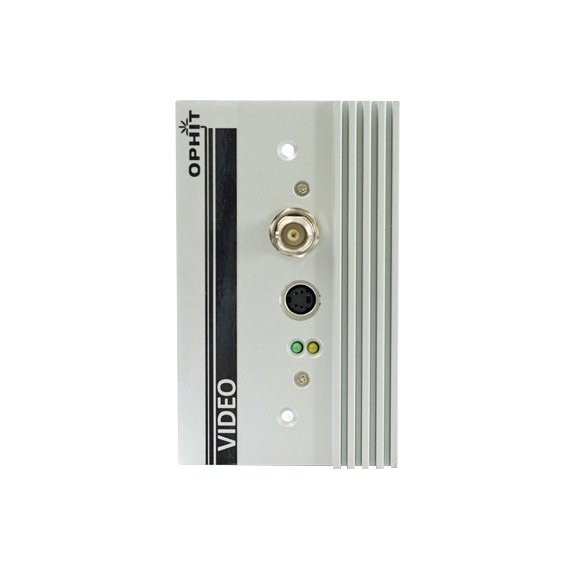

S-Video to DVI copper 광컨버터 Wall plate 타입
Features

• Wall plate type optical converter
• Converts S-Video signal to optical signal for transmitting high resolution of video signal to a remote location
• Transmits video signal up to 500M by 1ch multimode fiber
• Works cooperatively with DSL receiver model
• Dual color LED power indicator provides power an signal presence indication
• An ideal solution for clean, professional cable organization and termination
• Input
  - Format : Composite Video (NTSC, PAL, SECAM), S-Video
  - Suppoting Resolution : NTSC / PAL / SECAM / S-video
  - Connector : 1 x BNC, 1 x S-VHS
• Output
  - Format : DVI (single link)
  - Supporting Resolution : 1024 x 768 @ 60Hz (fixed)

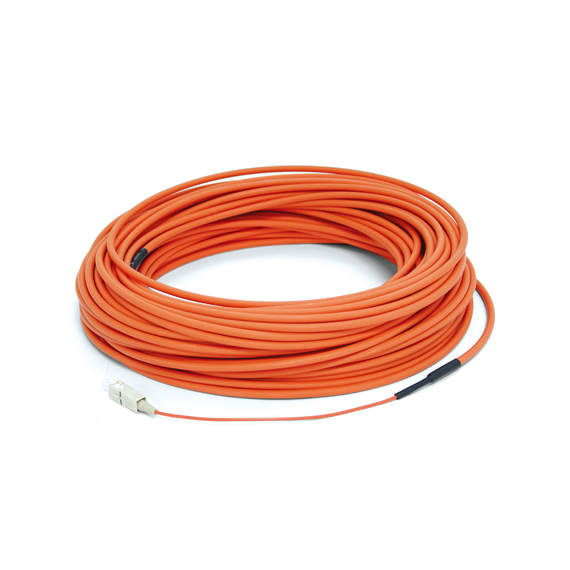

  - Optical Fiber : 1 x SC
  - Using Fiber Type : Multi-mode 50/125 or 62.5/125µm optic fiber
  - Transmission Distance : Max 1,650ft (500meters)
• General
  - Dimension : 115W x 70D x 90H (mm)
  - Power Consumption : 4.5W
  - Power Supply : DC 12V, 1.5A 3.5mm pitch 3position terminal (Phenix Contact)
  - Enclosure Type : AL, Silver




Package
• CVBXW-S-Video
• User’s manual

Ordering Information
• CVBXB-S-Video
• DSL Receiver (option)
