Digital/Analog→Fiber

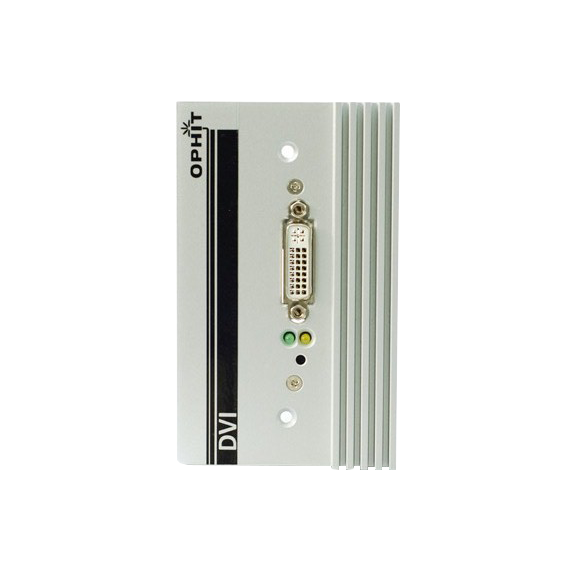

CVBXW-DVI
Product description
DVI copper to DVI 광컨버터 Wall plate 타입
Features

• Wall plate type optical converter
• Converts DVI signal to optical signal for transmitting high resolution of video signal to a remote location
• Transmits video signal up to 500M by 1ch multimode fiber
• Works cooperatively with DSL receiver model
• Dual color LED power indicator provides power an signal presence indication
• An ideal solution for clean, professional cable organization and termination



Specification


• Input
  - Format : DVI (single link)
  - Suppoting Resolution : 1920 x 1200 / 1080P @ 60Hz
  - Connector : 1 x DVI-I
• Output
  - Format : DVI (single link)
  - Supporting Resolution : 1920 x 1200 / 1080P @ 60Hz
  - Optical Fiber : 1 x SC

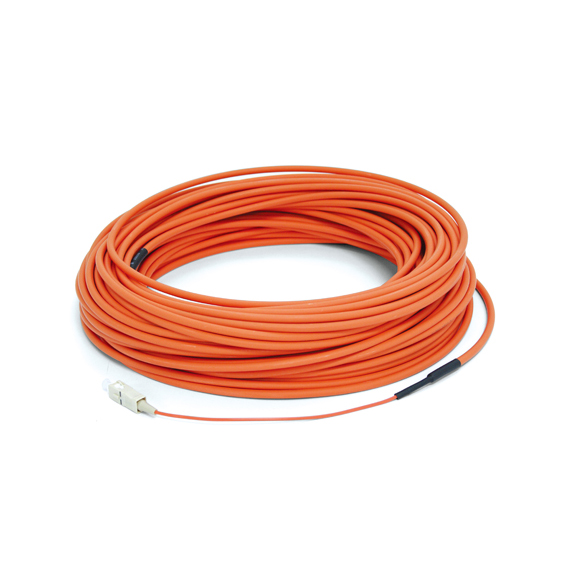

  - Using Fiber Type : Multi-mode 50/125 or 62.5/125µm optic fiber
  - Transmission Distance : Max 1,650ft (500meters)
• General
  - Dimension : 115W x 70D x 90H (mm)
  - Power Consumption : 1.9W
  - Power Supply : DC 12V, 1.5A 3.5mm pitch 3position terminal (Phenix Contact)
  - Enclosure Type : AL, Silver




Package
• CVBXW-DVI
• User’s manual

Ordering Information
• CVBXW-DVI
• DSL Receiver (option)
