Riser
OFNR
Product description
nonconductive riser 타입 광 케이블
Download
Riser Rated Optical Fiber Cables
OFNR (Optical fiber, nonconductive, riser)

• LC-4ch-LC(Indoor Type)
  Fiber Type : Multi-mode Glass fiber 50/125um , OFNR Rated
  Channel : 4Ch
  Connector Type : LC
  Outer jacket Diameter : 2 mm (Flat type)
  Length : 10M ~ 1000M
  Color : Orange
  For OPHIT products : DDL

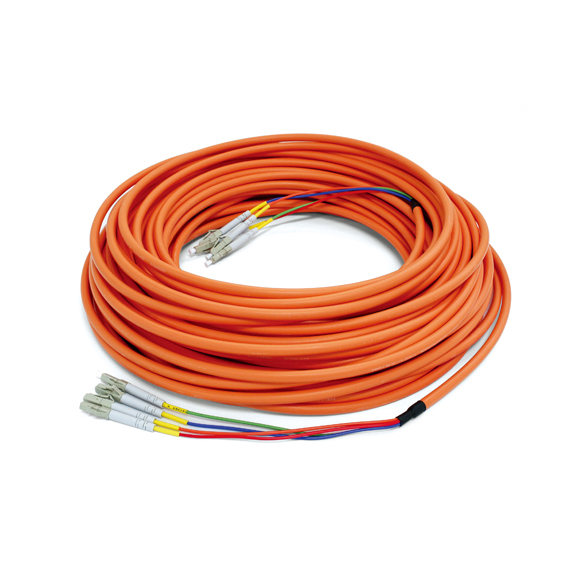

• LC-4ch-LC(Outdoor Type)
  Fiber Type : Multi-mode Glass fiber 50/125um , OFNR Rated
  Channel : Break Out 4Ch
  Connector Type : LC
  Outer jacket Diameter : 7.5 mm (Outdoor type)
  Length : 10M ~ 1000M
  Color : Orange
  For OPHIT products : DDL

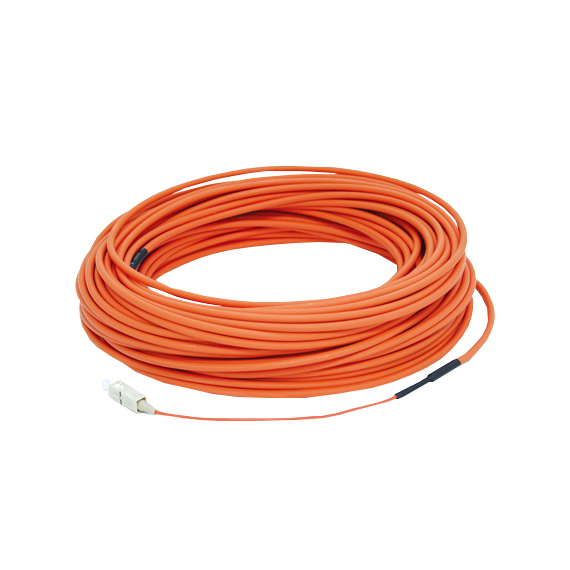

• LC/SC-1ch-LC/SC (Double Jacket)
  Fiber Type : Multi-mode Glass fiber 50/125um , OFNR Rated
  Channel : 1Ch
  Connector Type : LC/SC
  Outer jacket Diameter : 4.5 mm
  Length : 10M ~ 1000M
  Color : Orange
  For OPHIT products : DSL, DSP, HSP, DSFP, DOL

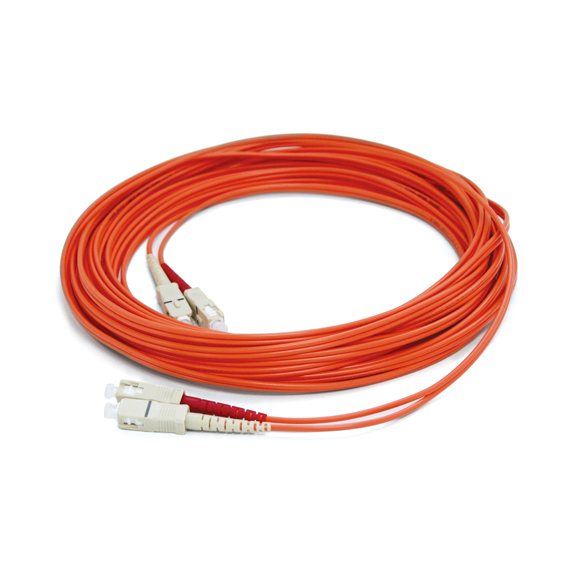

• LC/SC-2ch-LC/SC (Indoor Type)
  Fiber Type : Multi-mode Glass fiber 50/125um , OFNR Rated
  Channel : 2Ch
  Connector Type : LC/SC
  Outer jacket Diameter : 2 mm (Duplex, Flat type)
  Length : 10M ~ 1000M
  Color : Orange
  For OPHIT products : DQSP
